Pareto Chart

Pareto Chart: A Key Quality Control (QC) Tool

The Pareto Chart is a widely used QC tool for prioritization, decision-making, and problem identification.

1) It is one of the 7 Basic QC Tools for effective problem-solving.

2) Types of Pareto Charts:

   - Pareto by Phenomenon

   - Pareto by Cause

3) Based on the 80/20 Rule, where 20% of the problems or actions contribute to 80% of performance or outcomes.

4) Combines a Bar Graph and a Line Graph, making it a Compound Graph.

5) Three Axes:

a) X-Axis: Represents the items of study (e.g., causes or phenomena).

b) Primary Y-Axis: Displays the count, frequency, or sum.

c) Secondary Y-Axis: Shows the cumulative percentage contribution.

6) Data is organized in descending order of frequency on the X-Axis, with the 7) “Other” category always placed at the end regardless of its count.

8) The cumulative percentage contribution is represented by the line graph.

Steps to Create a Pareto Chart:

1) Organize the data for causes/phenomena in descending order.

2) Calculate the percentage contribution of each item.

3) Compute the cumulative percentage contribution of all items.

4) Place causes/phenomena on the X-Axis.

5) Plot the count or frequency of causes/phenomena on the primary Y-Axis.

6) Plot the cumulative percentage contribution on the secondary Y-Axis.

7) Add chart title, data period, axis titles, and data labels.

Identify the Vital Few items for prioritization.

Four Basic Shapes of a Pareto Chart:

1) Cliff Pareto:

   - Highlights a single dominant factor.

   - Priorities are easy to establish.

2) New Mountain Pareto:

   - Highlights multiple significant factors.

   - Priorities are based on cost or ease of improvement.

   - Often shows that 80% of problems are caused by 20% of factors.

3) Old Mountain Pareto:

   - Lacks a clear primary factor.

   - Not useful for prioritization.

   - Requires re-categorization with a different variable.

4) Valley Pareto:

   - The "Miscellaneous" category dominates.

   - Requires further categorization to address the issues.

   - Not practical for directly addressing miscellaneous items.

Common Mistakes to Avoid:

1) Missing Data Period: Always specify the timeframe for the data used.

2) Incorrect Scale: Ensure the cumulative percentage line starts at the top edge of the first bar.

3) Gaps Between Bars: Ensure bars are adjacent without gaps.

4) 'Other' Bar Placement: The "Other" category must always appear at the end of the chart.

By following these guidelines and avoiding common errors, you can create accurate and effective Pareto Charts for analyzing problems and driving impactful solutions.

If you found this useful, please repost and follow Dinesh Sharma for more content.

#pareto #improvement #qctools #problemsolving

#tpm #tqm #lean #toc #wcm #performance #managementconsulting #operationalexcellence #corporatetraining #peopledevelopment #maintenancemanagement #projectmanagement #epk #ekpahlakadam

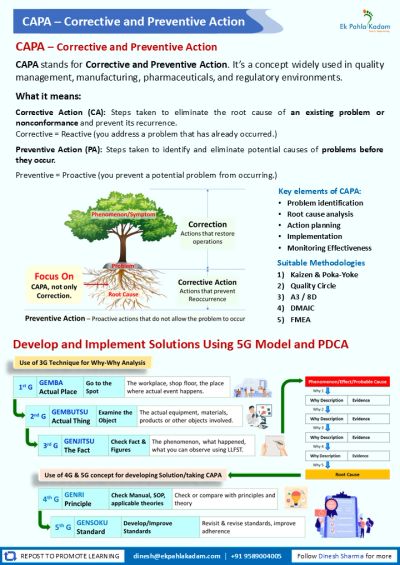

 CAPA: The Quality Management Practice That Fixes Problems for Good

In any industry where quality matters — manufacturing, healthcare, pharmaceuticals, or software — mistakes happen. The real question isn't whether problems occur, but what you do about them. That's where CAPA comes in.

What Is CAPA?
CAPA stands for Corrective and Preventive Action. It is a structured quality management methodology designed to do two things: fix problems that have already occurred, and stop new ones from happening in the first place.

Corrective Action (CA) is reactive — it addresses an existing defect, failure, or nonconformity and eliminates its root cause so it doesn't recur.

Preventive Action (PA) is proactive — it identifies potential risks before they become real problems and puts measures in place to avoid them.

Together, CA and PA form a closed-loop system that drives continuous improvement.

The Key Steps of a CAPA Process
A well-executed CAPA follows a clear sequence:
Problem Identification — Define the issue with precision. Vague problems lead to vague solutions.
Root Cause Analysis — Use tools like 5 Whys, Fishbone diagrams, or FMEA to find the real cause, not just the symptom.
Action Planning — Develop targeted corrective or preventive measures.
Implementation — Put the plan into action with clear ownership and timelines.
Monitoring Effectiveness — Verify that the actions taken actually solved the problem and that it hasn't returned.

Why CAPA Matters
CAPA is more than a compliance checkbox. When done well, it builds institutional knowledge, reduces waste, protects customers, and creates a culture where problems are seen as opportunities to improve — not just incidents to manage.

In regulated industries like pharmaceuticals and medical devices, CAPA is a regulatory requirement under standards such as ISO 9001, FDA 21 CFR Part 820, and GMP guidelines. But its value extends far beyond compliance: any organization serious about quality can benefit from embedding CAPA into its operations.

The Bottom Line
The difference between organizations that repeatedly struggle with the same problems and those that continuously improve often comes down to one thing — whether they treat problems as one-time fires to put out, or as signals worth investigating deeply. CAPA provides the framework to do the latter, turning every failure into a step forward.

Understanding the Cost of Quality (CoQ)

The Cost of Quality (CoQ) is a vital concept in quality management that helps organizations understand the total cost incurred to deliver products or services that meet quality standards. It provides insights into the trade-offs between investing in quality and avoiding the expenses associated with poor quality. By analyzing CoQ, businesses can identify areas for improvement, reduce waste, and enhance customer satisfaction.

Breaking Down the Cost of Quality

The Cost of Quality is traditionally divided into four main components:

1. Prevention Costs

These are costs associated with actions taken to prevent defects and ensure products or services meet quality standards from the start. Investing in prevention minimizes the occurrence of errors and reduces downstream costs. Examples include:

• Employee      training programs
• Process      improvement initiatives
• Quality      planning and audits
• Development      of quality systems and standards

2. Appraisal Costs

Appraisal costs are incurred during the inspection, testing, and verification of products or processes to ensure they meet established quality standards. These costs focus on detecting issues before products reach customers. Examples include:

• Product      testing and inspections
• Equipment      calibration for quality checks
• Supplier      audits and evaluations

3. Internal Failure Costs

These are costs that arise when defects or issues are detected within the organization before the product or service is delivered to the customer. Addressing these problems internally prevents defective products from reaching the market but still incurs losses. Examples include:

• Scrap      and rework costs
• Downtime      caused by production defects
• Investigation      and root cause analysis of defects

4. External Failure Costs

External failure costs are incurred when a defect or failure is discovered after the product or service has been delivered to the customer. These are often the most damaging as they not only involve direct financial losses but also harm the organization's reputation. Examples include:

• Warranty      claims and repairs
• Product      recalls
• Legal      liabilities from customer complaints
• Loss      of customer loyalty

The Importance of Measuring CoQ

Measuring the Cost of Quality is crucial for several reasons:

1. Improved      Decision-Making: Understanding CoQ allows organizations to identify      areas requiring investment to improve quality.
2. Justifying      Improvement Initiatives: CoQ data provides evidence to support the      costs of quality improvement proposals.
3. Prioritizing      Actions: By categorizing costs, businesses can focus on the most      critical areas for reducing waste and enhancing efficiency.
4. Building      Long-Term Value: Analyzing CoQ helps in balancing quality investments      with the cost savings achieved by avoiding failures.

Strategies to Optimize CoQ

To effectively manage and reduce the Cost of Quality, organizations can adopt the following strategies:

1. Focus      & Invest in Prevention: Follow 1:10:100 rule
2. Use      Data Analytics: Develop a system for data capturing and analysis.
3. Implement      Continuous Improvement Practices: Focus on taking CAPA – Corrective      and Preventive Action
4. Encourage      a Quality Culture: Establish a quality first culture
5. Monitor      CoQ Metrics: Keep monitoring, analysing, and focusing on continual      improvement.

Conclusion

The Cost of Quality is not just about the financial impact of maintaining quality; it is a strategic tool that drives continuous improvement and long-term business success. By focusing on prevention and addressing hidden costs, organizations can reduce overall expenses, improve operational efficiency, and build stronger relationships with their customers. Investing in quality today ensures a sustainable and competitive future in the marketplace.
